Water treatment

If your main concern is to reduce colour, odour, chlorine, chemicals and organic substances from your water supply, the Cintropur® water treatment units use granular Activated Carbon. The high volume of carbon and the built in flow restrictor ensures optimal results and maximum contact time purifying your water. Granular media provides extremely high surface area and economical prices for the refills.


NO MORE EXPENSIVE CARBON CARTRIDGES!



Domestic & Industrial Water Treatment


CINTROPUR TIO

TIO vertical filter and 0.57 LTR carbon treatment unit. Flow rate 40 L/min ensures maximum contact. Complete with 1” fittings and single 25 micron sleeve.

** 0.57 Ltr of granular activated carbon has the same surface area of 39 Rugby fields!!


CINTROPUR NW25 DUO-CTN

DUO-CTN In-line filter and 0.57 LTR carbon treatment unit. Flow rate 40 L/min ensures maximum contact. Can be fitted at source or underbench directly to your sink mixer. Complete with 3/4" & 1” fittings and single 25 micron sleeve.


CINTROPUR NW25 TE-CTN

NW25 TE-CTN 0.57 LTR carbon treatment unit. Flow rate 40 L/min ensures maximum contact.


CINTROPUR NW32 TE

NW32TE 1.7 LTR carbon treatment unit. Flow rate 40 L/min ensures maximum contact, 1 1/4" fittings.




CINTROPUR NW500 TE

NW500TE 4.85 LTR carbon treatment unit. Flow rate 80 L/min ensures maximum contact, 2" male BSP fittings.



Activated Carbon




IDEAL FOR REDUCING CHLORINE !

Granular activated carbon (GAC) is commonly used for reducing organic matter, tannins, colour, odour, chemicals and residual disinfectants in water supplies. Activated carbon is a favored water treatment technique because of its multifunctional nature and the fact that it adds nothing detrimental to the treated water. The two principal mechanisms by which activated carbon removes contaminants from water are adsorption and catalytic reduction.  Organics are reduced by adsorption and residual disinfectants are reduced by catalytic reduction. Organic material in water supplies comes from decaying plant life, which become more soluble in water over time. Activated carbon reduces chlorine to a non-oxidative chloride ion. The reaction is very fast and takes place in the first few inches of a new activated carbon bed.


Activated Carbon Media 1.25kg / 3.4 LTR

Unit Volumes:
NW25TE-CTN, DUO-CTN & TIO = 0.57 LTR (6x refills), area = 273,600 m2 by adsporption.
NW32TE = 1.7 LTR (2x refills), area = 816,000 m2 by adsporption.
NW500 = 4.85 LTR, area = 2,328,000 m2 by adsporption.


For hygienic reasons and in order to make the best use of its functions and efficiency, it is recommended to change the activated carbon at least every four to six months.
In order to preserve the adsorption capacity of activated carbon, a sediment filter before the carbon unit is recommended to filter out suspended solid particles.



DUO-CTN & TIO models.

The DUO & TIO units are dual-function units consisting of a 25μ sediment filter combined with an internal container for activated carbon, polyphosphate or other granular treatment media. The most common use is treatment with activated carbon for:

* Dechlorination of water

* Removal of unpleasant odour and colour

* Improving the taste of drinking water

* Removal of chemicals such as herbicides and pesticides

 Installation.

CINTROPUR activated carbon units are ideal for whole house water treatment.

 Maintenance.

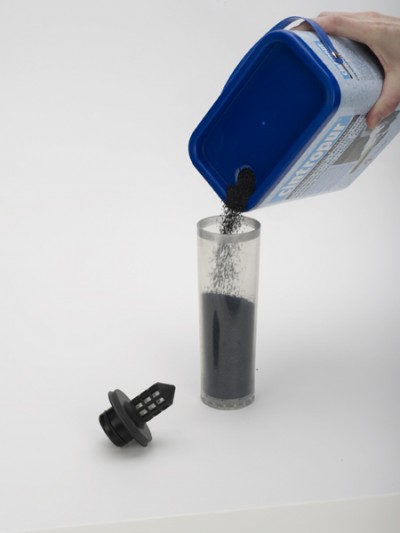

A 1.25kg pack of CINTROPUR activated carbon is sufficient for 6 REFILLS

It is recommended to change the activated carbon at least after each 4 to 6 months of use with rainwater.

Replace the sleeve of the filter at least twice a year depending on the volumes and quality of the water supply. The standard product comes with a filter fineness of 25 micron but can be equipped with 10, 5 or 1 micron for finer filtration for town supplies. The type of sleeve used is the same used in the model NW25 found here.

IDEAL FOR RURAL, RAINWATER & TOWN SUPPLY PURIFICATION!









NW25-DUO Filter & Carbon Unit



TIO Filter & Carbon Unit

Water Treatment Package Deal systems available in our Online Shop.
